4.5 HP 85 N.m 4700 RPM Commercial Treadmill AC Motor Three-phase Induction 1

4.5 HP 85 N.m 4700 RPM Commercial Treadmill AC Motor Three-phase Induction 2

4.5 HP 85 N.m 4700 RPM Commercial Treadmill AC Motor Three-phase Induction 3

4.5 HP 85 N.m 4700 RPM Commercial Treadmill AC Motor Three-phase Induction 4

4.5 HP 85 N.m 4700 RPM Commercial Treadmill AC Motor Three-phase Induction 5

4.5 HP 85 N.m 4700 RPM Commercial Treadmill AC Motor Three-phase Induction 6

4.5 HP 85 N.m 4700 RPM Commercial Treadmill AC Motor Three-phase Induction 7

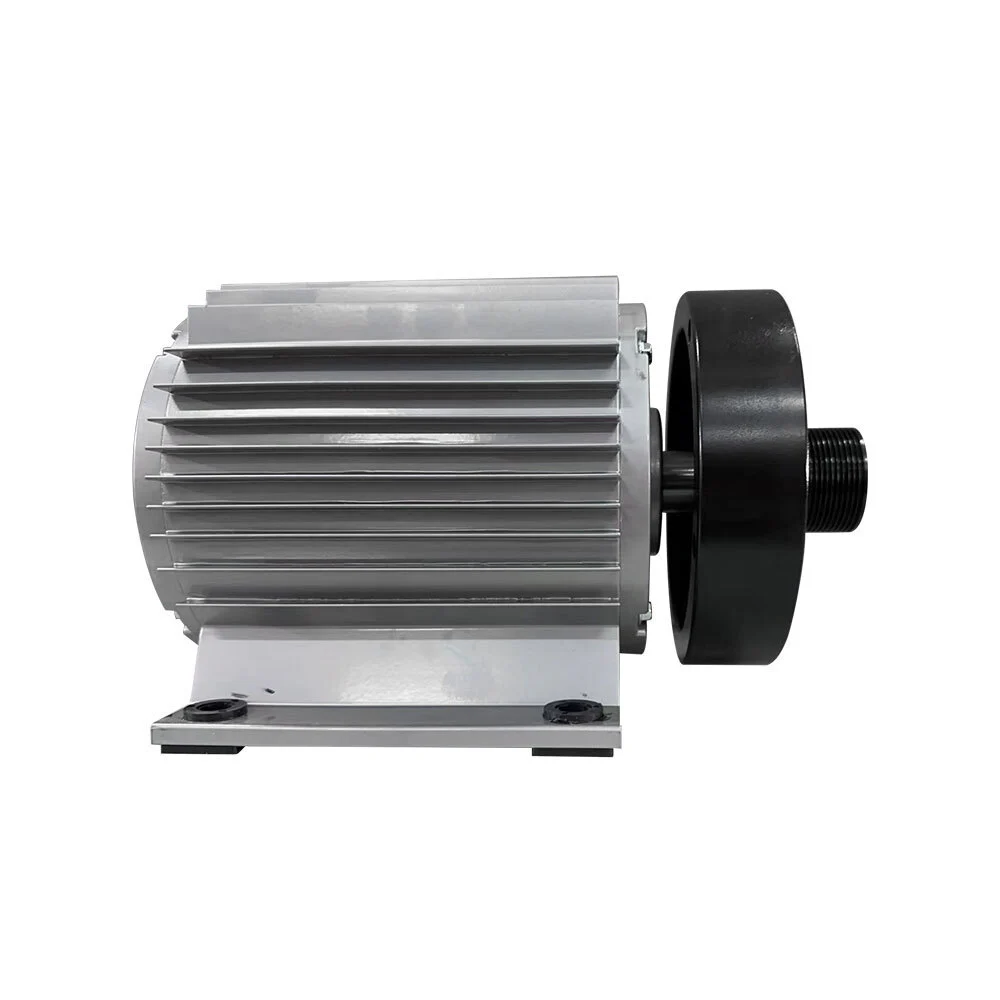

4.5 HP 85 N.m 4700 RPM Commercial Treadmill AC Motor Three-phase Induction

【Shell Material】 The shell is made of high-strength metal materials, such as aluminum alloy or stainless steel. It can effectively resist external impacts and protect the precision components inside.

【Protection Functions】 Overheat protection, Overload protection, Short circuit protection

【Efficiency and Noise】 92% efficient design ensures optimal energy utilization, and a noise level of 57 dB provides users with a quieter fitness experience.

【Application】 The rated power of 4.5 HP and peak power of 6.5 HP provide powerful power support for high-intensity training, suitable for high-end commercial gyms and high-performance training venues.

Inquiry

Write a Review

Product Parameters

Voltage	220V	Rated Frequency	50/60Hz
Rated Power	4.5HP	Maximum Speed	4700RPM
Peak Power	6.5 HP	Noise Level	<57dB
Maximum Torque	85N.m	Temperature	-10°C- 50°C
Efficiency	＞92%	Cooling System	Air Cooling Cystem

Product Parameters

Keling provides more than just motor power: it offers holistic care through one-stop services, From customizationrequests to after-sales support, we stand hand in hand with you, creating the perfect electric bike that exceeds you expectations.

Energy saving stator

1. Highly conductive copper wire minimizes resistance loss and improves the energy conversion efficiency of the motor.

2, The stator core is usually made by stacking high-quality silicon steel sheets together. Having excellent magnetic permeability can reduce electromagnetic energy loss and improve the magnetic field efficiency of the stator.

3.High temperature resistant materials can not only prevent rotor deformation or performance degradation due to temperature rise, but also effectively extend the service life of the motor.

Core Rotor

1. Enhance conductivity and efficiency, reduce energy consumption.

2. The optimized rotor material and structure effectively reduce the noise during motor operation.

3. Using high-performance permanent magnets as rotor materials can ensure a long-lasting and strong magnetic field for the motor.

4. The use of high-temperature resistant materials can prevent rotor deformation or performance degradation due to temperature rise.

Housing material

1. Robust protective barrier

2. Protect internal components

3. Optimize heat dissipation

4. Durability and long lifespan

5. Enhance security

6. Beautiful appearance

Product Drawing

Our products are strictly produced according to the drawings. We can also customize production

products according to customer requirements.

Product Application

Our motor can be applied to a variety of models and styles of electric bicycles, with more options and high

adaptability.

Related Products

Our motor can be applied to a variety of models and styles of electric bicycles, with more options and high

adaptability.

Treadmill Motor Push-pull Rod

Commercial Treadmill Motor

Unidirectional Reluctance Generator

Double Ended Magnetoresistance Device

FAQ

Is the kits difficult to install ?How to install?

Not difficult but need you like hand-work. Only install our motor kits and fix well the brake lever and controller. Connect the cables is ok. We will offer you inslation video and will service on you on line.

Need I offer what data for bikes?

It is better you can send me your bike photo, tire type numbers: such as 26'*1.95.

Can my bike be used with the kits?

Yes sure and on the market 95% bikes can be used with our kits!

Can you accept customization?

Sure, we’ve been working with some worldwide brands for years on customization.

Would you provide samples?

Sure, as you wish. And the sample cost would be returned in your mass production order.

How about your lead time?

Generally speaking, up to 50 pieces are shipped within 30 days, but please contact our sales team to confirm.
